Model
DQD-HV

Item specifics

Type
solar submersible pump
Pump Body Material
aluminum
Package type
wooden case
Warranty
2 years
Certificate
CE, GS, RoHS

Review

Description

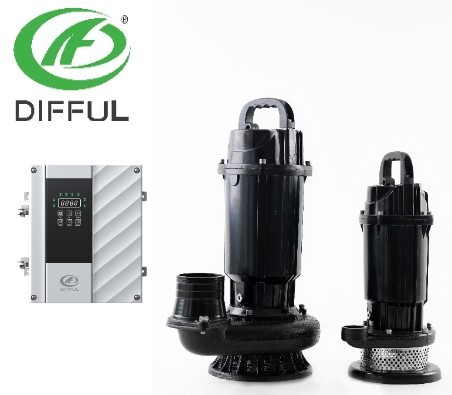

HV HIGH FLOW SOLAR SUBMERSIBLE PUMP
ITEM
Voltage
Optimum input voltage(DC)
Power
Max.Flow
Max.Head
Outlet
Cable
DQD7-26-110-750-HV
110V
110V-350V
750W
7m³/h
26m
1''
5m
DQD12-30-110-1100-HV
110V
110V-350V
1100W
12m³/h
30m
1.5''
5m
DQD25-25-110-1100-HV
110V
110V-350V
1100W
25m³/h
25m
2''
5m
DQD30-28-110-1500-HV
110V
110V-350V
1500W
30m³/h
28m
2''
5m
DQD35-20-110-1500-HV
110V
110V-350V
1500W
35m³/h
20m
2.5''
5m
DQD50-10-110-1500-HV
110V
110V-350V
1500W
50m³/h
10m
3''
5m

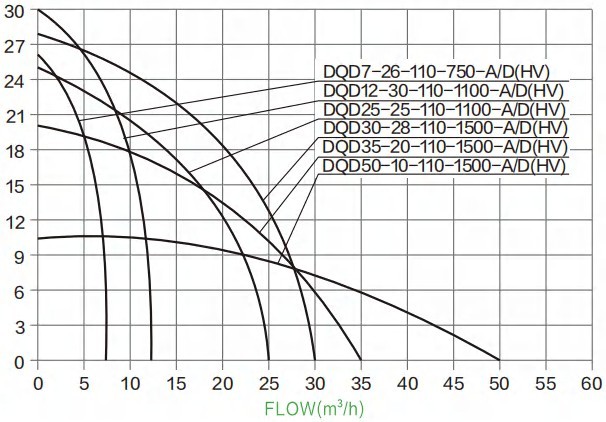

HV HIGH FLOW SOLAR SUBMERSIBLE PUMP PARAMETER

HOW TO CHOOSE A PUMP

Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.

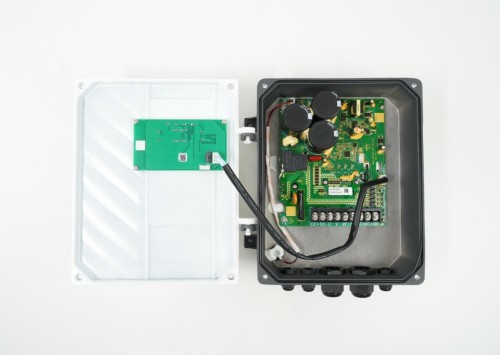

CONTROLLER INTERNAL WIRING DIAGRAM

HOW TO CHOOSE SOLAR PANEL
DQD7-26-110-750-HV
DQD7-26-110-750-HV
DQD12-30-110-1100-HV
DQD25-25-110-1100-HV
DQD12-30-110-1100-HV
DQD30-28-110-1500-HV
DQD35-20-110-1500-HV
DQD50-10-110-1500-HV

PRODUCT PACKAGING
We offer you: (package included)
- 1 x High flow solar submersible pump with a 5 meter cable

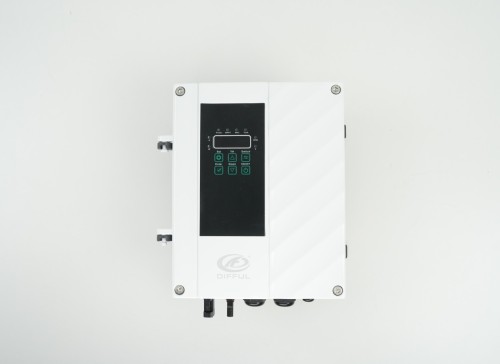

- 1 x DC pump controller with MPPT function

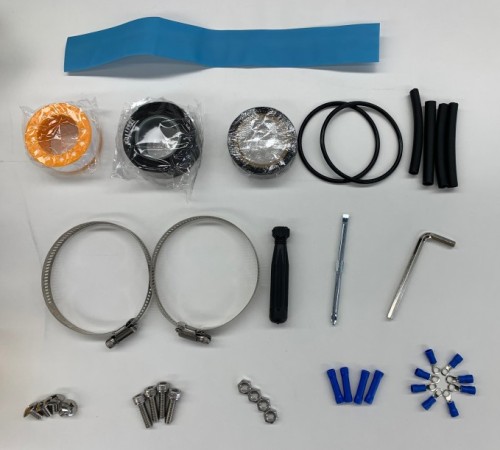

- 1 x Cable connection connector kit
- 1 x Connector kit for waterproofing
Items you will need to purchase yourself: (not included in the package)
- Suitable solar panel.
