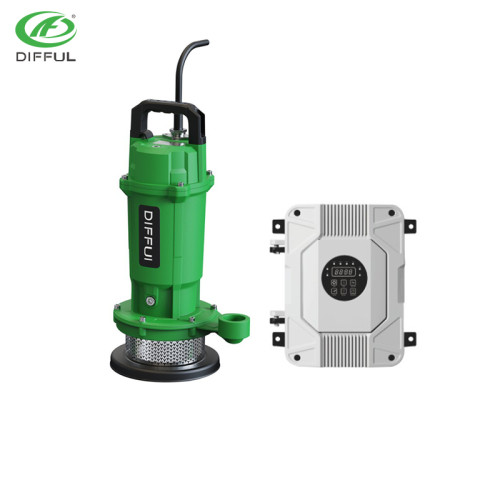

HJQD AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP/4500RPM DIFFUL&WELLUP SOLAR SURFACE PUMP/SOLAR IRRIGATION PUMPS
- Model
- HJQD-A/D(HV)
Item specifics
- Type
- surface solar centrifugal pump
- Material
- cast iron/brass
- Application
- domestic water supply,irrigation
- Voltage
- 85V-280V
- Package type
- wooden case
- Warranty
- 1/2 Year
- Standard or nonstandard
- Standard
- Certificate
- CE, RoHS
Review
Description
4500 RPM DIFFUL&WELLUP WATER PUMP
Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.
Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

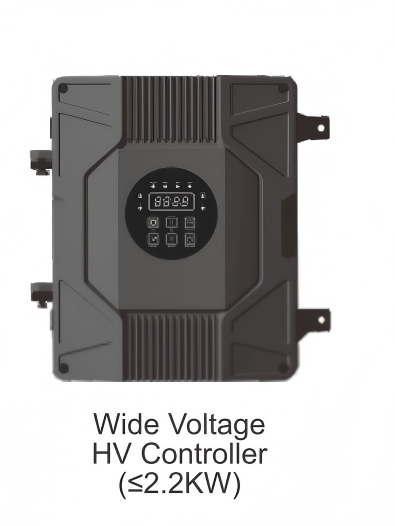

AC/DC&WIDE VOLTAGE BRUSHLESS CENTRIFUGAL SOLAR PUMP

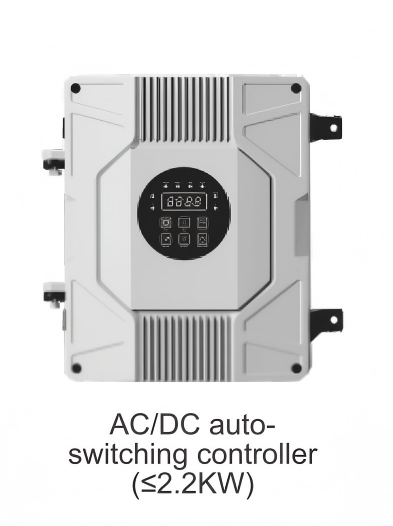

-MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.
- Features: Cost-effective,large flow，easy installation and low noise operation and the preferred model for most customers.
- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.
TECHNICAL DATA
ITEM | BUILT-IN CONTROLLER MODEL | VOLTAGE | OPTIMUM INPUT VOLTAGE(DC) | POWER | MAX.FLOW | MAX.HEAD | OUTLET | CABLE | OPEN CIRCUIT VOLTAGE(VOC) |
HJQD7-26-110-750-A/D(HV) | / | 85V-280V(/) | 100V-350V | 750W | 7m³/h | 26m | 1" | 5m | <450V |
HJQD12-30-110-1100-A/D(HV) | 85V-280V(/) | 100V-350V | 1100W | 12m³/h | 30m | 1.5" | 5m | <450V | |
HJQD25-25-110-1100-A/D(HV) | 85V-280V(/) | 100V-350V | 1100W | 25m³/h | 25m | 2" | 5m | <450V | |
HJQD30-28-110-1500-A/D(HV) | 85V-280V(/) | 100V-350V | 1500W | 30m³/h | 28m | 2" | 5m | <450V | |
HJQD35-20-110-1500-A/D(HV) | 85V-280V(/) | 100V-350V | 1500W | 35m³/h | 20m | 2.5" | 5m | <450V | |
HJQD50-10-110-1500-A/D(HV) | 85V-280V(/) | 100V-350V | 1500W | 50m³/h | 10m | 3" | 5m | <450V |
Hydraulic Performance Curve
How to choose a solar pump?
1.Confirm your technical requirements
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requirement with our product
Calculate the "actual lift needed" and find an appropriate pump.
Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.
How to calculate the head?
