3 inch 1hp DC brushless solar pump plastic impeller solar power pump price solar water pump for well solar pump sales
- Model
- 3DPC
Item specifics
- Type
- 3 inch solar pump with plastic impeller
- Pump Body Material
- Stainless steel
- Outlet Material
- Brass
- Impeller Material
- Plastic
- Application
- Household water supply,small area irrigation
- Package type
- wooden case
- Warranty
- 2 years
- Certificate
- CE, GS, RoHS
Review
Description

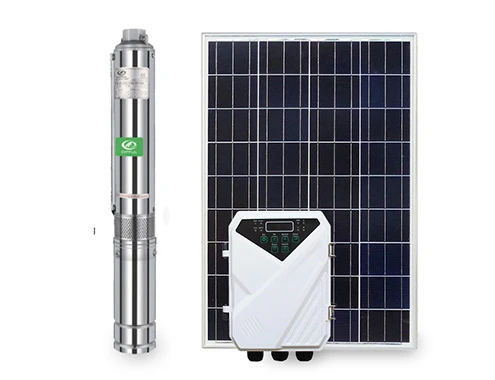

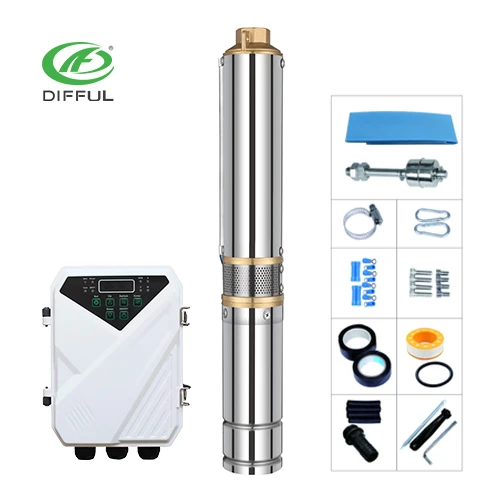

3 INCH DC BRUSHLESS SUBMERSIBLE SOLAR PUMP WITH PLASTIC IMPELLER
3-inch Solar submersible pump with plastic impeller: Large flow, suitable for irrigation, ranch, farms, etc.
● Permanent magnet DC brushless synchronous motor
● S/S outlet, oil cylinder, connection
● Plastic impeller

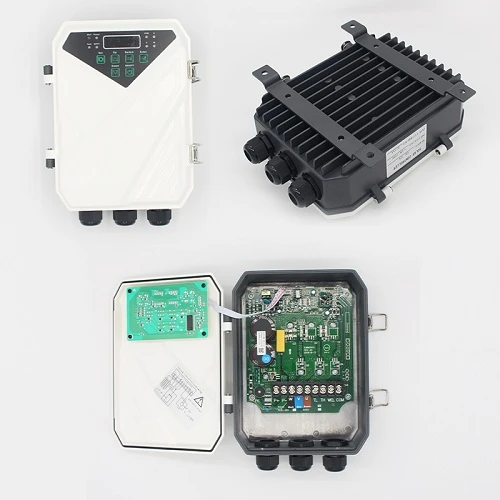

● MPPT Controller
3 INCH SOLAR PUMP WITH PLASTIC IMPELLER
| 3" PLASTIC IMPELLER SOLAR PUMP | |||||
|---|---|---|---|---|---|
| Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |

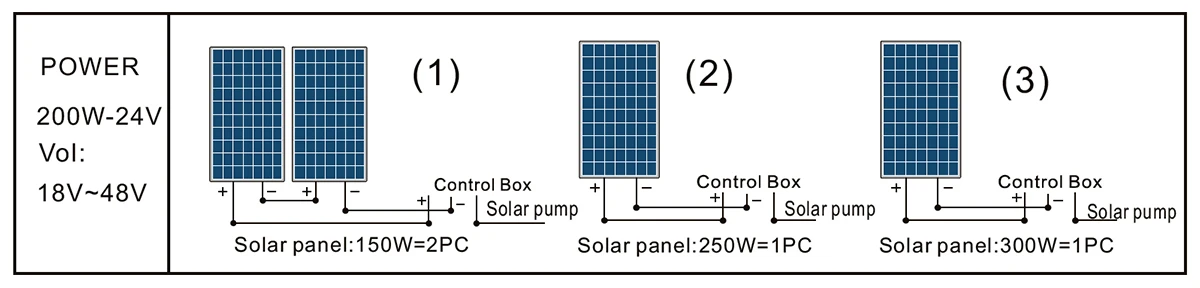

| 3DPC3-25-24-200 | 200 | 24 | 3 | 25 | 1.25" |

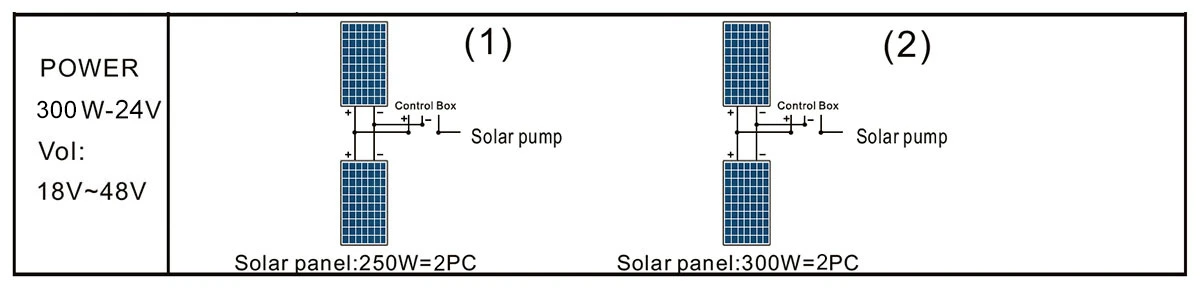

| 3DPC3-35-24-300 | 300 | 24 | 3 | 35 | 1.25" |
| 3DPC3.5-47-48-400 | 400 | 48 | 3.5 | 47 | 1.25" |

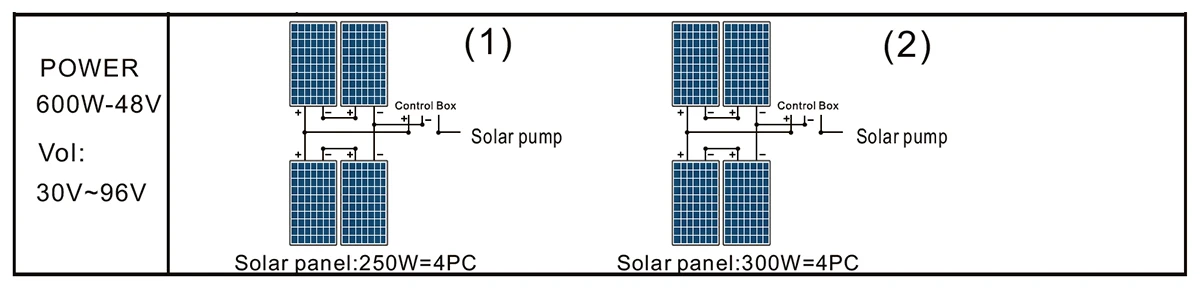

| 3DPC3.5-80-48-600 | 600 | 48 | 3.5 | 80 | 1.25" |
| 3DPC3.5-80-72-600 | 600 | 72 | 3.5 | 80 | 1.25" |

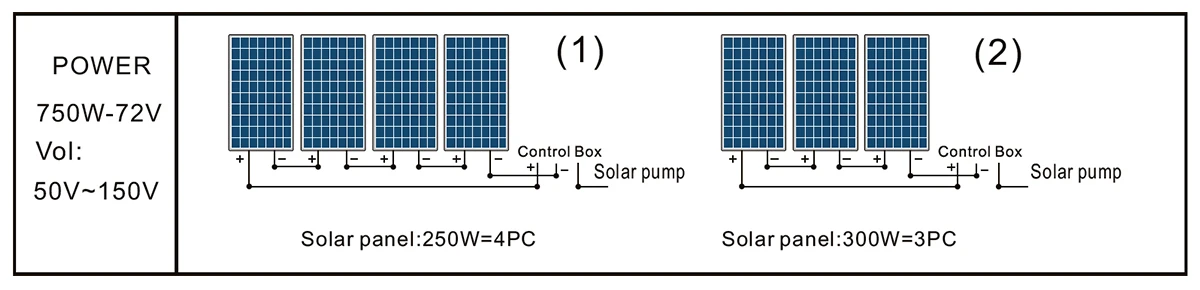

| 3DPC3.5-95-48-750 | 750 | 48 | 3.5 | 95 | 1.25" |
| 3DPC3.5-95-72-750 | 750 | 72 | 3.5 | 95 | 1.25" |

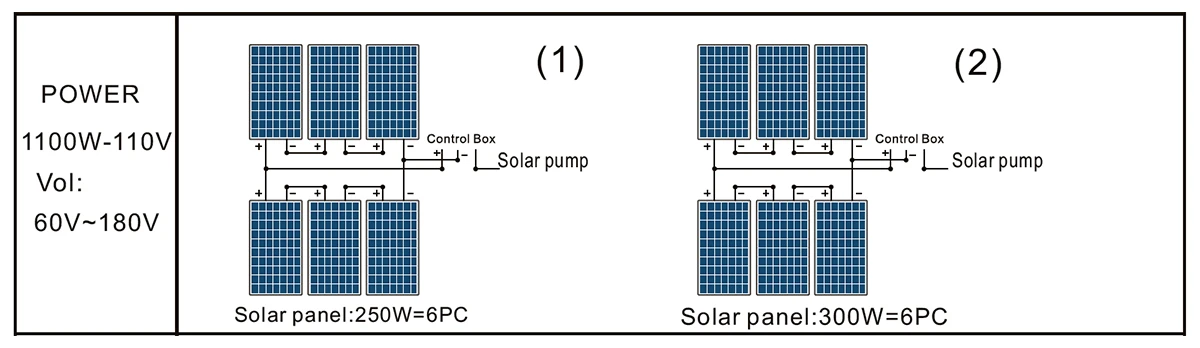

| 3DPC3.8-123-72-1100 | 1100 | 72 | 3.8 | 123 | 1.25" |
| 3DPC3.8-123-110-1100 | 1100 | 110 | 3.8 | 123 | 1.25" |
| 3DPC3.8-155-110-1300 | 1300 | 110 | 3.8 | 155 | 1.25" |

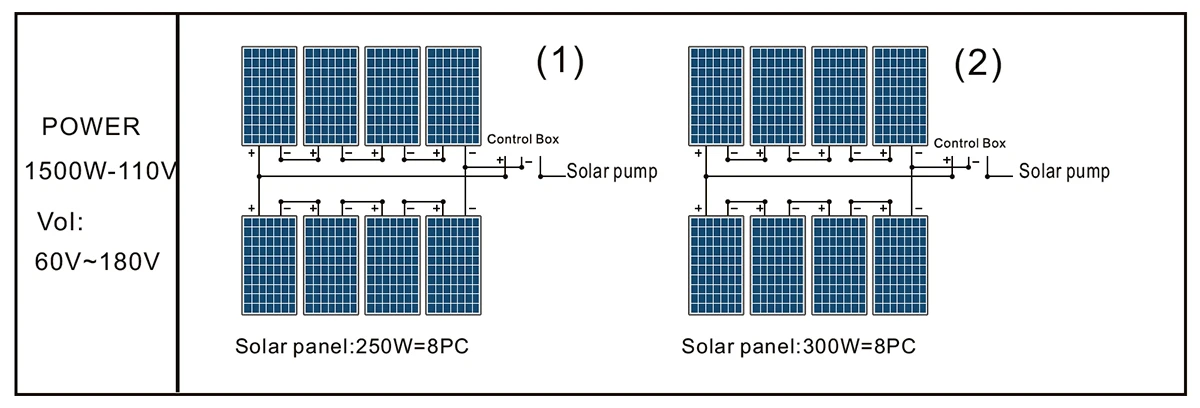

| 3DPC3.8-180-110-1500 | 1500 | 110 | 3.8 | 180 | 1.25" |

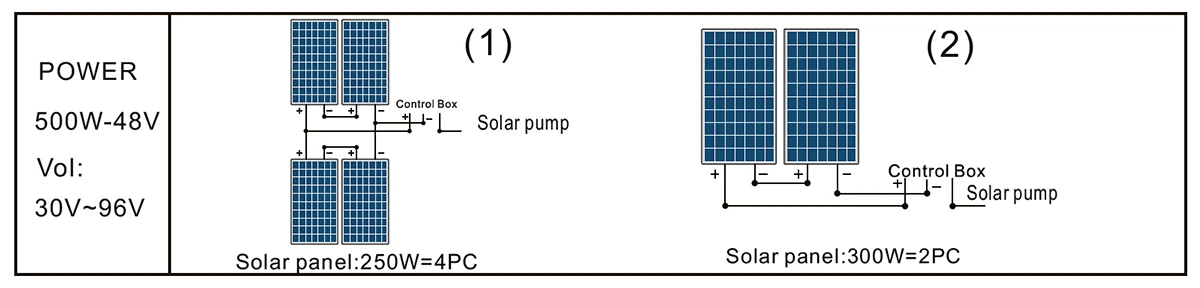

| 3DPC5-45-48-500 | 500 | 48 | 5 | 45 | 1.5" |
| 3DPC5.2-50-48-600 | 600 | 48 | 5.2 | 50 | 1.5" |
| 3DPC5.2-50-72-600 | 600 | 72 | 5.2 | 50 | 1.5" |
| 3DPC5.2-75-110-750 | 750 | 110 | 5.2 | 75 | 1.5" |
| 3DPC5.5-65-72-750 | 750 | 72 | 5.5 | 65 | 1.5" |
| 3DPC5.5-65-110-750 | 750 | 110 | 5.5 | 65 | 1.5" |
| 3DPC6-84-110-1100 | 1100 | 110 | 6 | 84 | 1.5" |
| 3DPC6-125-110-1500 | 1500 | 110 | 6 | 125 | 1.5" |
| 3DPC7-46-72-750 | 750 | 72 | 7 | 46 | 1.5" |
| 3DPC7-46-110-750 | 750 | 110 | 7 | 46 | 1.5" |
| 3DPC7.5-62-110-1100 | 1100 | 110 | 7.5 | 62 | 1.5" |
| 3DPC7.5-78-110-1500 | 1500 | 110 | 7.5 | 78 | 1.5" |

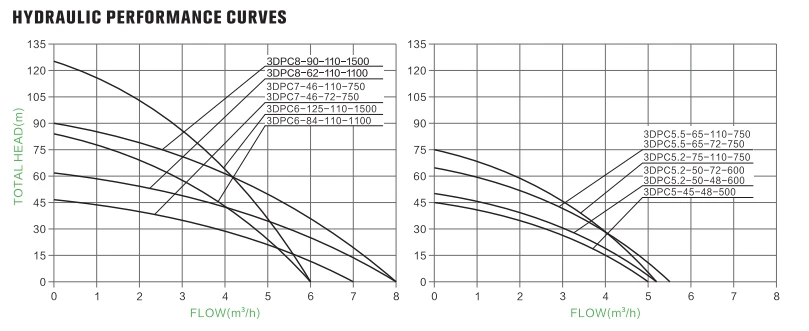

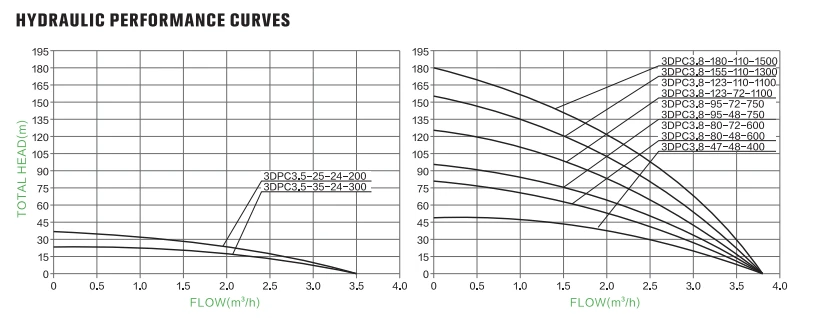

3 INCH PLASTIC IMPELLER SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
-
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
-
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
