3 inch Screw solar bore pump 120W/210W/500W solar powered bore pump for household water supply
- Model
- 3DSS
Item specifics
- Type
- screw type solar submersible pump
- Material
- stainless steel
- Package type
- wooden case
- Application
- domestic water supply, small area irrigation
- Warranty
- 2 years
- Certificate
- CE, GS, RoHS
Review
Description

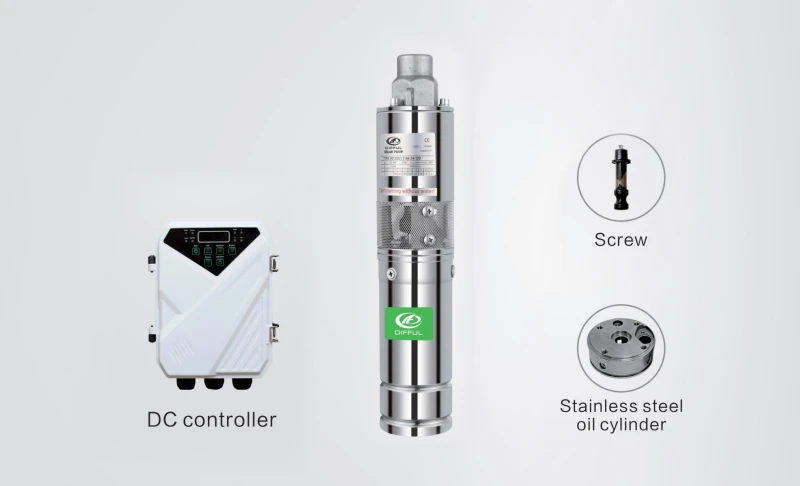

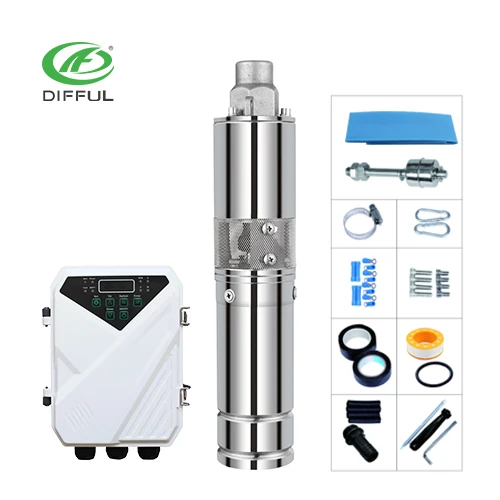

3 INCH DC BRUSHLESS SCREW SOLAR PUMP
Solar screw pump: small power and large head, used to provide household water, animal husbandry, and small area irrigation.
● Permanent magnet DC brushless synchronous motor
● Stainless steel outlet, oil cylinder, connection

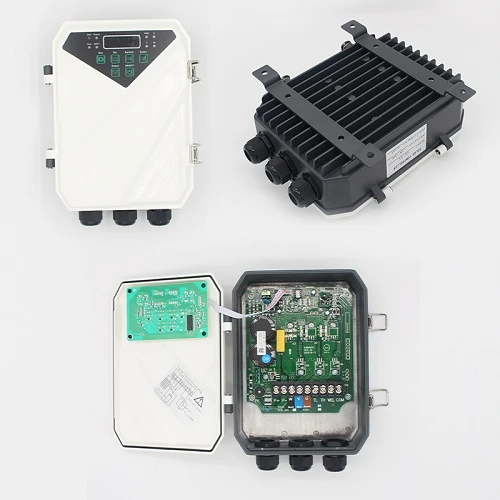

● MPPT Controller
3 INCH SCREW SOLAR PUMP PARAMETE
| 3" SCREW SOLAR PUMP | |||||
| Model | Power | Voltage | Max flow(m3/h) | Max head(m) | Outlet(inch) |
| 3DSS0.5-28-12-80 | 80 | 12 | 0.5 | 28 | 0.75" |
| 3DSS1.2-56-24-120 | 120 | 24 | 1.2 | 56 | 0.75" |
| 3DSS1.2-77-36-210 | 210 | 36 | 1.2 | 77 | 0.75" |
| 3DSS1.7-109-48-500 | 500 | 48 | 1.7 | 109 | 0.75" |
| 3DSS2.0-150-48-750 | 750 | 48 | 2.0 | 150 | 0.75" |
| 3DSS2.0-150-72-750 | 750 | 72 | 2.0 | 150 | 0.75" |
| 3DSS2.0-180-72-1100 | 1100 | 72 | 2.0 | 180 | 0.75" |
3 INCH SCREW SOLAR PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according todifferent folw and prices.
