2Inch DC Brushless Solar Pump | PLASTIC IMPELLER | Efficient ,Reliable And Economical Green Water Solution
- Model
- 2HJPC
Item specifics
- Material
- Brass
- Type
- Brushless Solar Pump
- Warranty
- 2 year
- MOQ
- 1set
- Model
- 2HJPC-DC Series
- Certificate
- CE, ISO9001
Review
Description

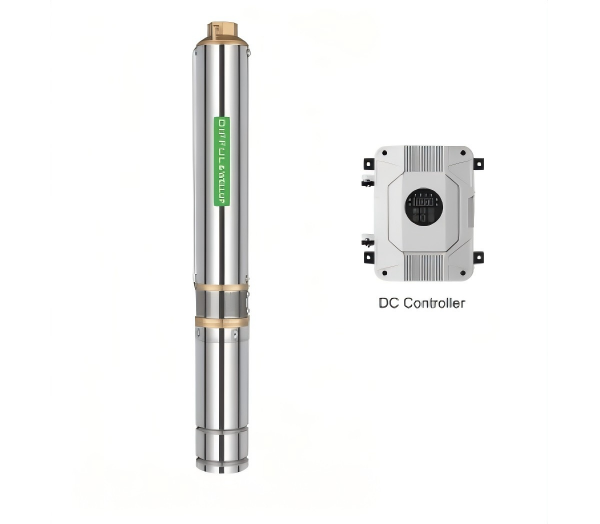

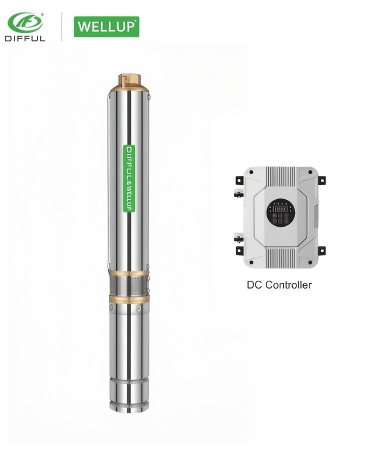

2"DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER
2"DC brushless solar pump - plastic impeller, MPPT controller, brushless motor. Better use for household water supply
Features:Cost-effective,large flow,the model preferred for most customer.
Hot selling market: Africa (seaside countries), America, Australia, island countries, etc.
2"DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER TECHNICAL DATA
| ITEM | Voltage | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
| 2HJPC1.5-35-24-200 | 24V | 30V-48V | 200W | 1.5m³/h | 35m | 0.75" | 2m | <60V | <60V |
| 2HJPC1.7-45-24-300 | 24V | 30V-48V | 300W | 1.7m³/h | 45m | 0.75" | 2m | <60V | <60V |
| 2HJPC1.7-64-48-400 | 48V | 60V-90V | 400W | 1.7m³/h | 64m | 0.75" | 2m | <60V | <60V |
2"DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER Parameter
ADVANTAGE OF DC SOLAR PUMP
- Permanent magnet DC brushless synchronous motor : The efficiency is increased by 15%-20%, saving energy consumption .

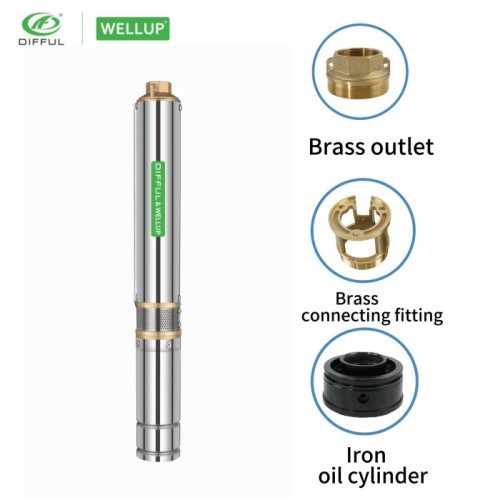

- Brass / Stainless steel outlet / connector , with better corrosion resistance .
- C ＆ U bearing , longer working life .
- Silicon carbide - impregnated graphite mechanical seal , long service life and reliable operation .
- 180℃ high temperature resistant copper wire , insulation class F.
- Cold rolled 600 silicon steel sheet stator and rotor.
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
