Model
4/6DSC-A/D

Item specifics

Type
AC/DC solar pump with S/S impeller
Pump Body Material
Stainless steel
Outlet Material
Stainless steel
impeller Material
Stainless steel
Package type
wooden case
Warranty
2 years
Certificate
CE, GS, RoHS
Application
irrigation，farm，ranch，garden，Household water

Review

Description

INTRODUCTION
PRODUCT PACKAGING
WIRING INSTRUCTIONS

4/6 INCH AC/DC SOLAR PUMP WITH S/S IMPELLER

4/6" S/S IMPELLER SOLAR WATER PUMP
Model Power(W) (AC)Voltage (DC)Voltage Max flow(m3/h) Max head(m) Outlet(inch)
4/6DSC30-19-150-1100-A/D 1100 85V-280V 80V-420V 30 19 3"
4/6DSC36-22-200-1500-A/D 1500 85V-280V 80V-420V 36 22 3"
4/6DSC36-38-300-2200-A/D 2200 85V-280V 80V-420V 36 38 3"

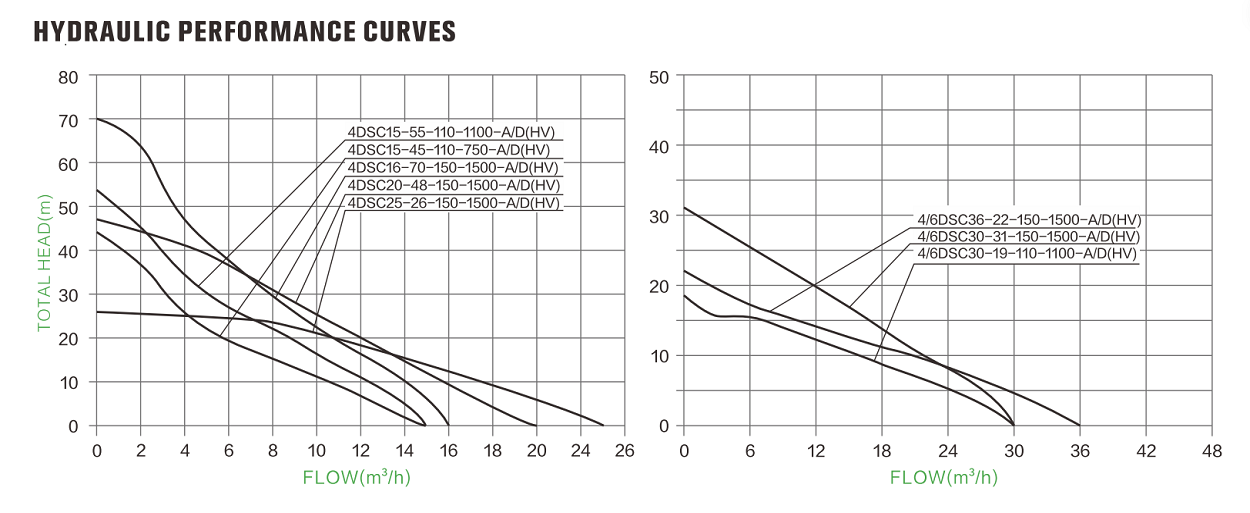

4/6 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER

AC/DC SOLAR SUBMERSIBLE PUMP


HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according todifferent folw and prices.

PRODUCT PACKAGING

What we get for you: (Package Include)

  • - 1 x 4/6 inch AC/DC Hybrid solar s/s impeller pump with one 2m cable

  • - 1 x Pump controler with MPPT function

  • - 1 x Stainless steel float swith (sensor for tank)

  • - 1 x Pump outlet joint connector

  • - 1 x Splice kit for cable join

  • - 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

  • - Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

  • - Poly pipe from pump to water tank. ( recommend 3 inch or over diameter poly pipe)

  • - Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.


CONTROLLER INTERNAL WIRING DIAGRAM

controller internal wiring

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4/6DSC26-18-150-1100-A/D model matches the solar panel voltage between 80V～420V.

  • 4/6DSC26-18-150-1100-A/D

    4/6DSC26-18-150-1100-A/D PUMP SOLAR PANEL

  • 4/6DSC36-19-200-1500-A/D

    4/6DSC36-19-200-1500-A/D PUMP SOLAR PANEL

  • 4/6DSC36-38-300-2200-A/D

    4/6DSC36-38-300-2200-A/D PUMP SOLAR PANEL
