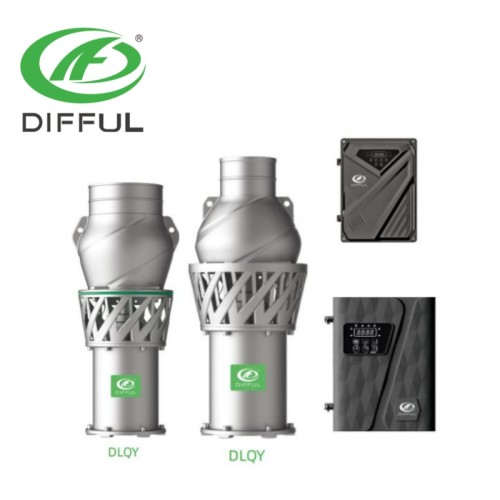

AC/DC large flow oil-immersed submersible pump with centrifugal impeller
- Model
- DLQY-A/D
Item specifics
- Type
- AC/DC oil-immersed pump with centrifugal impeller
- Pump Body Material
- Stainless steel
- Outlet Material
- Stainless steel
- impeller Material
- Stainless steel
- Package type
- wooden case
- Warranty
- 2 years
- Certificate
- CE
Review
Description
AC/DC OIL-SUBMERSIBLE PUMP WITH CENTRIFUGAL IMPELLER
ITEM | Rated flow(m³/h) | Rated head(m) | Max.flow(m³/h) | Max.head(m) | AC voltage(V) | Optimum DC voltage (V) | Open circuit voltage (VOC) | Power (kw) | Outlet (inch) | Cable (m) |
| DLQY40-21-4-A/D | 40 | 21 | 95 | 26 | 380 | 520-750 | <780 | 4 | 100 | 12 |
| DLQY50-22-5.5-A/D | 50 | 22 | 100 | 30 | 380 | 520-750 | <780 | 5.5 | 100 | 12 |
| DLQY100-16-7.5-A/D | 100 | 16 | 237 | 22 | 380 | 520-750 | <780 | 7.5 | 150 | 12 |
| DLQY70-14-4-A/D | 70 | 14 | 95 | 26 | 380 | 520-750 | <780 | 4 | 100 | 12 |
DLQY80-15-5.5-A/D | 80 | 15 | 100 | 30 | 380 | 520-750 | <780 | 5.5 | 100 | 12 |
DLQY150-12-7.5-A/D | 150 | 12 | 237 | 22 | 380 | 520-750 | <780 | 7.5 | 150 | 12 |

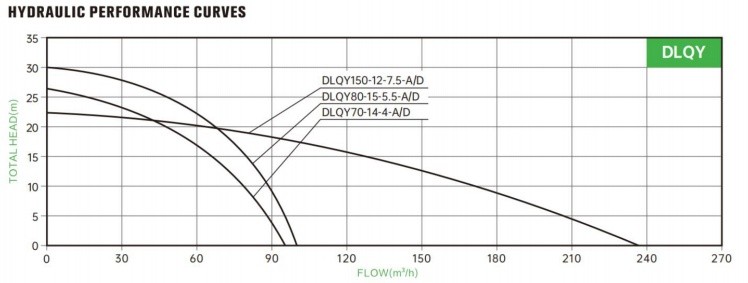

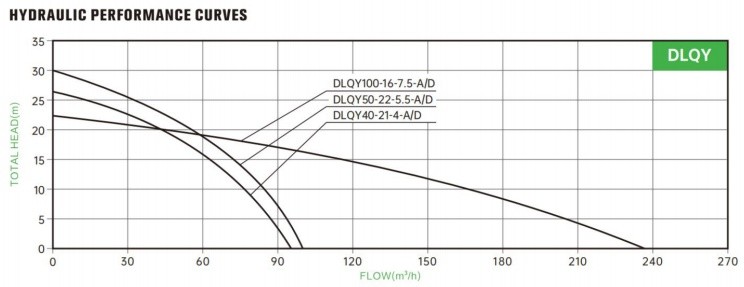

AC/DC CENTRIFUGAL IMPELLER OIL-SUBMERSIBLE PUMP PARAMETER
HOW TO CHOOSE A PUMP
Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requiremt with our product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.
