Model
4DSC-A/D

Item specifics

Type
AC/DC solar pump with plastic impeller
Pump Body Material
Stainless steel
Outlet Material
Brass
impeller Material
Plastic
Package type
wooden case
Warranty
2 years
Certificate
CE, GS, RoHS

Review

Description

INTRODUCTION
PRODUCT PACKAGING
WIRING INSTRUCTIONS

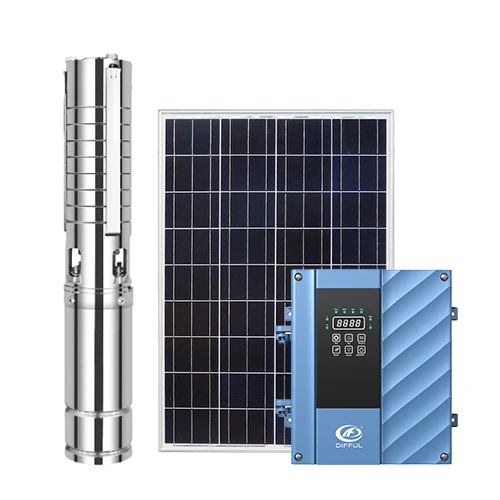

4 INCH AC/DC SOLAR PUMP WITH S/S IMPELLER

4" S/S IMPELLER SOLAR PUMP
Model Power(W) Voltage(V) Max flow(m3/h) Max head(m) Outlet(inch)
4DSC3.5-105-72-750-A/D 750 72 5.2 105 1.25"
4DSC3.5-140-110-1100-A/D 750 110 5.2 67 1.25"
4DSC4.8-203-110-1500-A/D 750 110 5.2 67 1.25"
4DSC6-67-110-750-A/D 750 110 6 67 1.25"
4DSC4.8-203-200-1500-A/D 1500 200 4.8 203 1.25"
4DSC6-101-110-1100-A/D 1100 150 5.2 101 1.25"
4DSC6-146-110-1300-A/D 1500 200 5.2 146 1.25"
4DSC9.5-50-72-750-A/D 1300 150 7.5 80 1.25"
4DSC9.5-75-110-1100-A/D 1500 200 7.5 100 1.25"
4DSC9.5-90-110-1500-A/D 1500 200 11 60 2"
4DSC15-45-72-750-A/D 1500 200 19 35 2"
4DSC15-55-110-1100-A/D 1500 200 25 26 2"
4DSC16-70-110-1500-A/D 2200 300 5.2 255 1.25"
4DSC20-48-110-1500-A/D 2200 300 7.5 150 1.25"
4DSC25-26-110-1500-A/D 2200 300 11 120 2"
4DSC6-255-200-2200-A/D 2200 300 19 60 2"
4DSC6-300-245-3000-A/D 2200 300 30 36 2"
4DSC6-360-300-4000-A/D 2200 300 30 36 2"
4DSC9.5-136-200-2200-A/D 2200 300 30 36 2"
4DSC9.5-220-245-3000-A/D 2200 300 30 36 2"
4DSC9.5-275-300-4000-A/D 2200 300 30 36 2"
4DSC18-95-200-2200-A/D 2200 300 30 36 2"
4DSC18-137-245-3000-A/D 2200 300 30 36 2"
4DSC18-168-300-4000-A/D 2200 300 30 36 2"
4DSC20-70-200-2200-A/D 2200 300 30 36 2"
4DSC20-82-245-3000-A/D 2200 300 30 36 2"
4DSC22-115-300-4000-A/D 2200 300 30 36 2"
4DSC30-36-200-2200-A/D 2200 300 30 36 2"
4DSC30-52-245-3000-A/D 2200 300 30 36 2"
4DSC30-74-245-3000-A/D 2200 300 30 36 2"

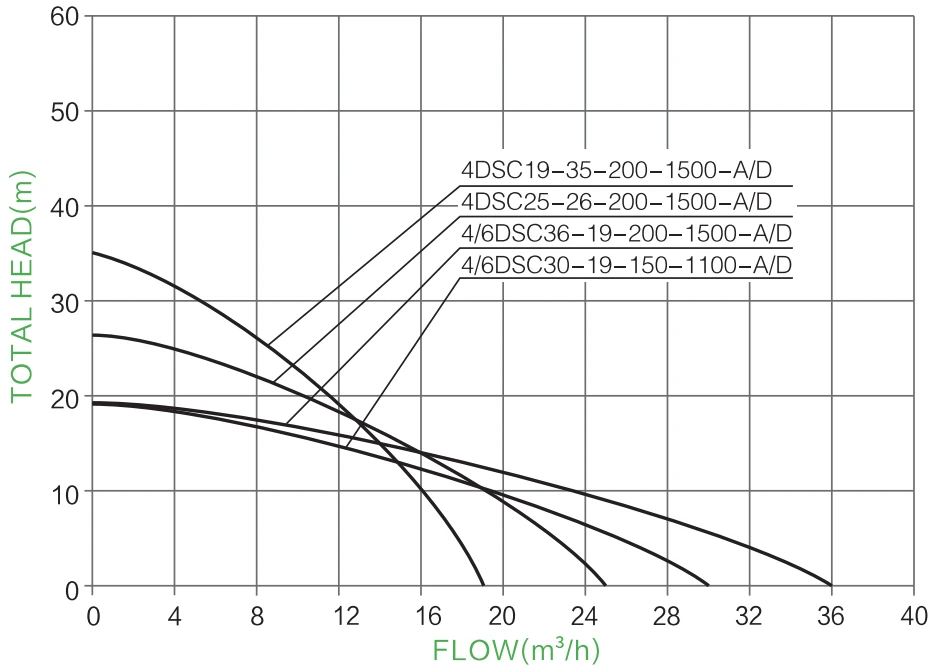

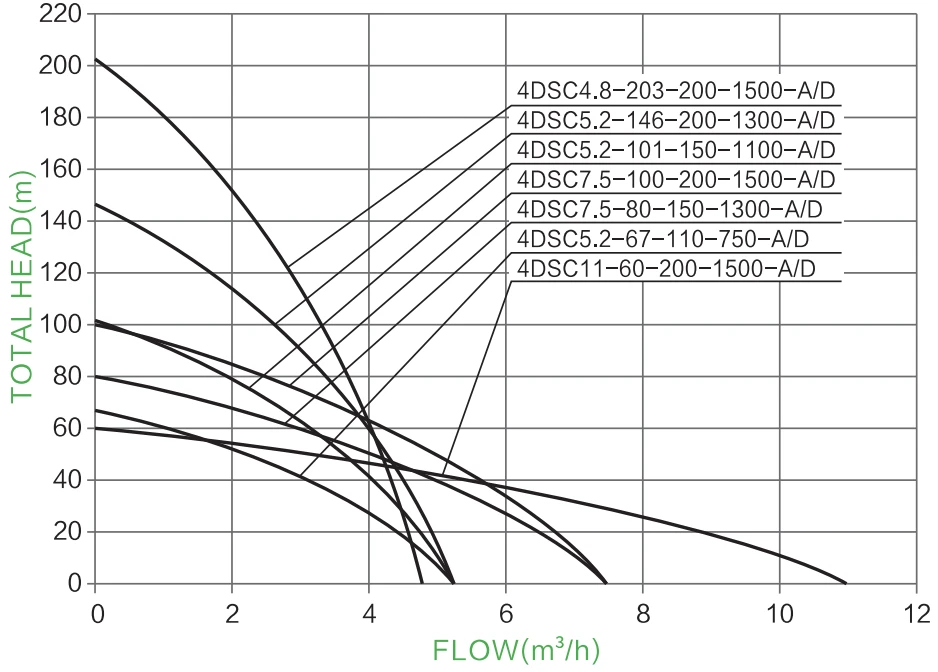

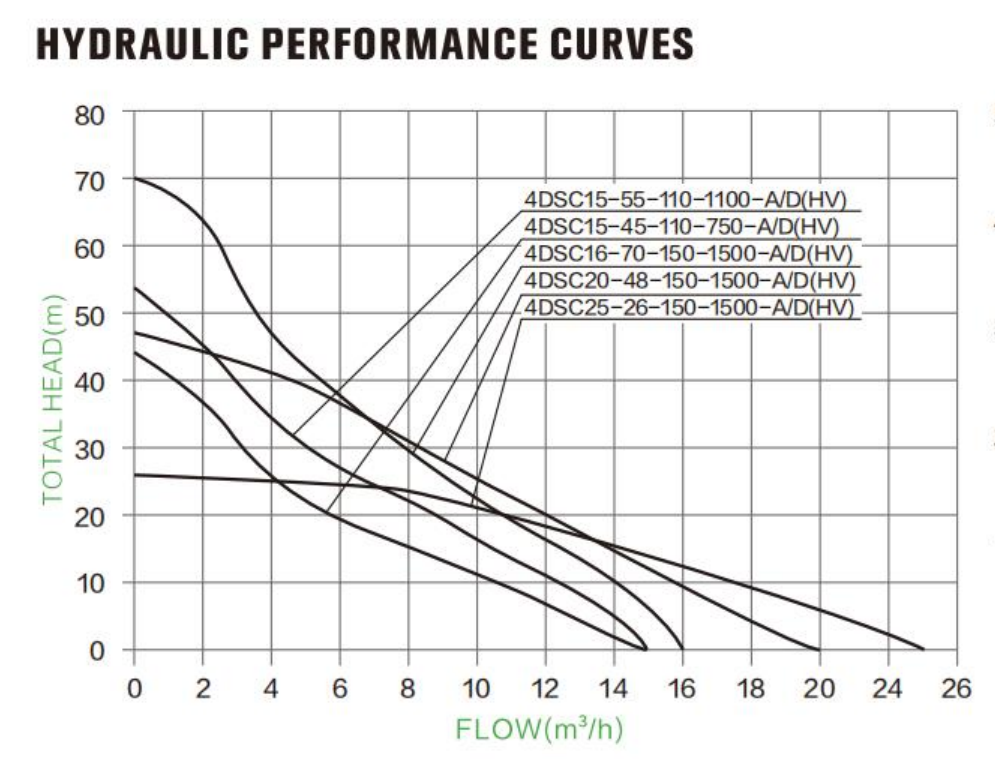

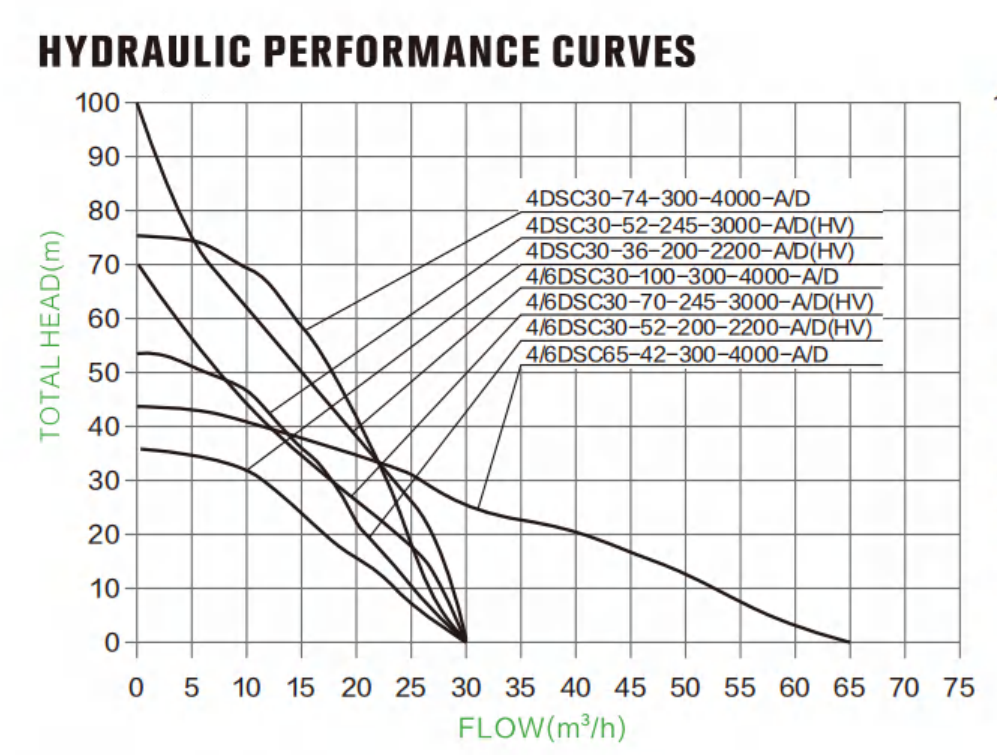

4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER



4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER
4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER
4 INCH AC/DC S/S IMPELLER SOLAR PUMP PARAMETER

HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according todifferent folw and prices.

How to calculate water pump head

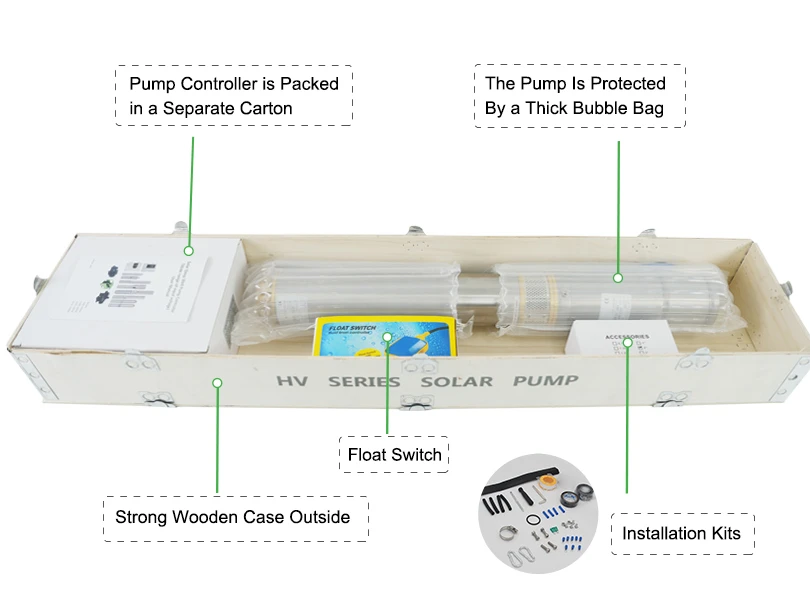

PRODUCT PACKAGING

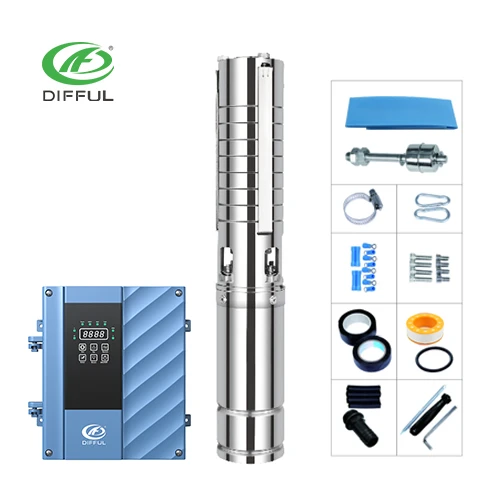

What we get for you: (Package Include)

  • - 1 x 4inch AC/DC solar S/S impeller pump with one 2m cable

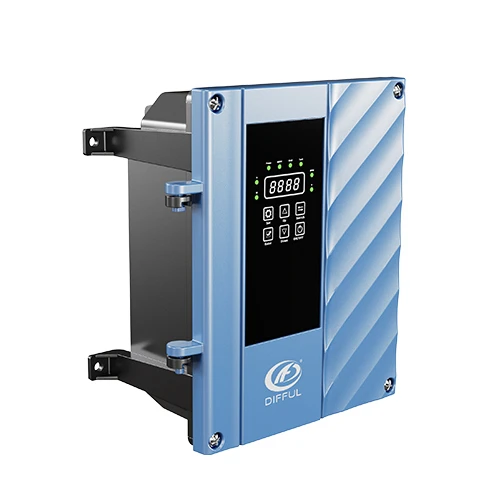

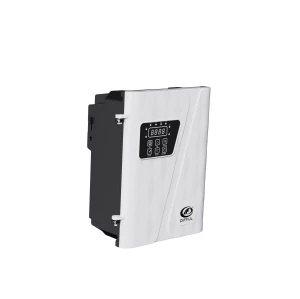

  • - 1 x AC/DC Pump controler with MPPT function

  • - 1 x Stainless steel float swith (sensor for tank)

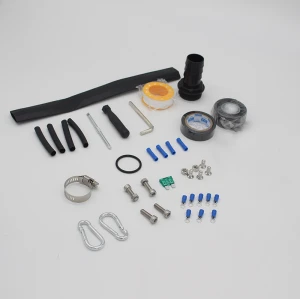

  • - 1 x Pump outlet joint connector

  • - 1 x Splice kit for cable join

  • - 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

  • - Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

  • - Poly pipe from pump to water tank. ( recommend 1.25/2inch or over diameter poly pipe)

  • - Wire power cable (3 wires plus earth). we recommend cable size at least same than the original cable in the pump.

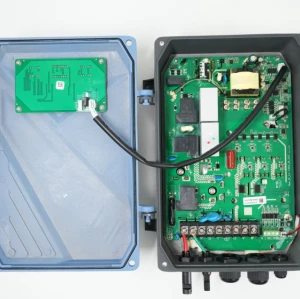

CONTROLLER INTERNAL WIRING DIAGRAM

controller internal wiring

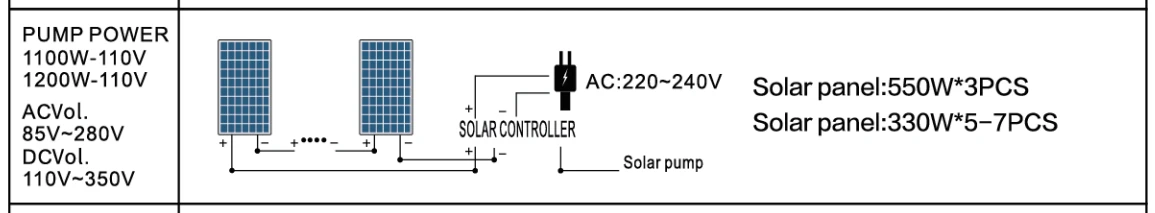

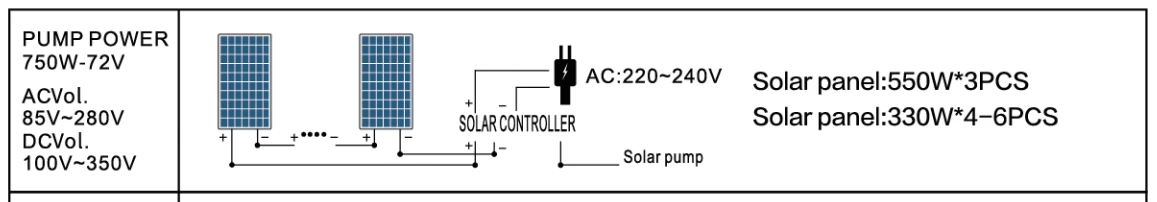

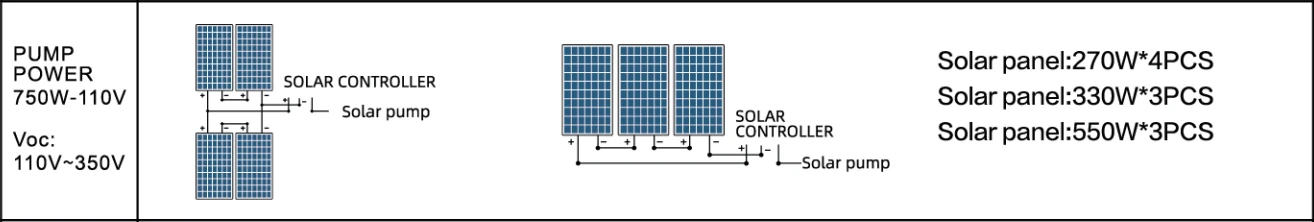

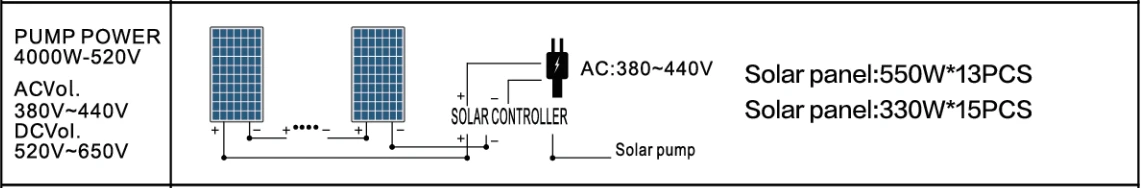

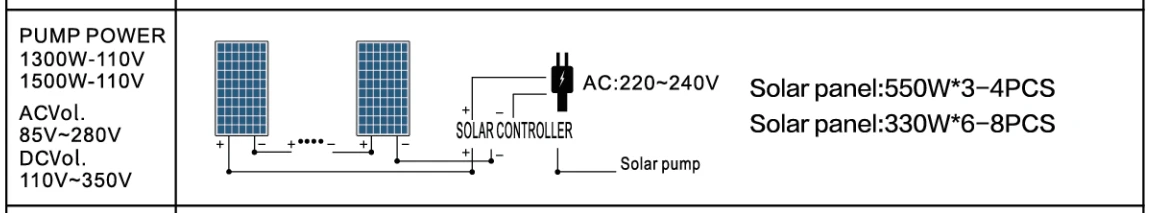

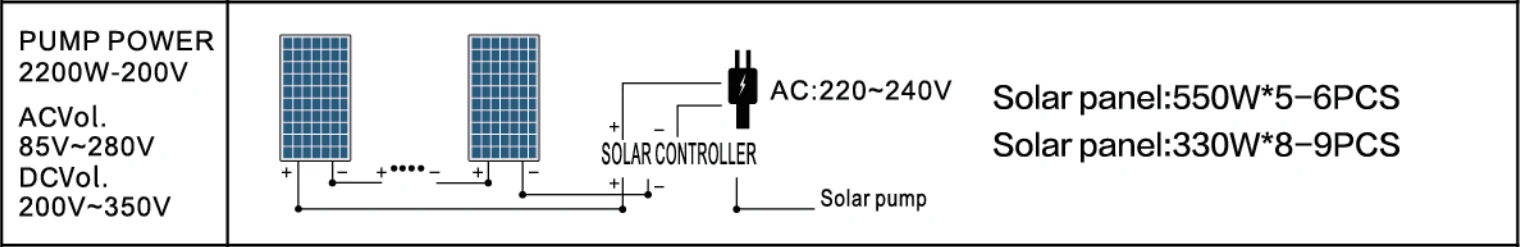

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DSC5.2-67-110-750-A/D model matches the solar panel voltage between 120V～420V.

  • 4DSC3.5-105-72-750-A/D

    4DSC5.2-67-110-750-A/D PUMP SOLAR PANEL

  • 4DSC3.5-140-110-1100-A/D

    4DSC4.8-203-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC4.8-203-110-1500-A/D

    4DSC5.2-101-150-1100-A/D PUMP SOLAR PANEL

  • 4DSC6-67-110-750-A/D

    4DPC5.2-146-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC4.8-203-200-1500-A/D

    4DPC7.5-80-150-1300-A/D PUMP SOLAR PANEL

  • 4DSC6-101-110-1100-A/D

    4DSC7.5-100-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC6-146-110-1300-A/D

    4DSC11-60-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC9.5-50-72-750-A/D

    4DSC19-35-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC9.5-75-110-1100-A/D

    4DSC25-26-200-1500-A/D PUMP SOLAR PANEL

  • 4DSC9.5-90-110-1500-A/D

    4DSC5.2-255-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC15-45-72-750-A/D

    4DSC7.5-150-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC16-70-110-1500-A/D

    4DSC11-120-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC20-48-110-1500-A/D

    4DSC19-60-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC25-26-110-1500-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC6-255-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC6-300-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC6-360-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC9.5-136-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC9.5-220-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC9.5-275-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC18-95-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC18-137-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC18-168-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC20-70-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC20-82-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC22-115-300-4000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC30-36-200-2200-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC30-52-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL

  • 4DSC30-74-245-3000-A/D

    4DSC30-36-300-2200-A/D PUMP SOLAR PANEL
