Model
4DPC-A/D

Item specifics

Type
AC/DC solar pump with plastic impeller
Pump Body Material
Stainless steel
Outlet Material
Stainless steel/Brass
impeller Material
Plastic
Package type
wooden case
Warranty
2 years
Certificate
CE, GS, RoHS

Review

Description

INTRODUCTION
PRODUCT PACKAGING
WIRING INSTRUCTIONS

  • 4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER


    PLASTIC IMPELLER : High cost performance, popular in South-east Asia and Africa

    MAX FLOW RANGE : 7-41m3/h

    MAX HEAD RANGE : 52-300m

    Solar water pump with Plastic impeller

4 INCH AC/DC BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER

4" AC/DC BRUSHLESS PLASTIC IMPELLER SOLAR PUMP
Model Power(W) Voltage(V) Max flow(m3/h) Max head(m) Outlet(inch)
4DPC7-230-380/520-3000-A/D 3000 AC380/DC520 7 230 1.25"
4DPC7-300-380/520-4000-A/D 4000 AC380/DC520 7 300 1.25"
4DPC9.5-195-380/520-3000-A/D 3000 AC380/DC520 9.5 195 2"
4DPC9.5-250-380/520-4000-A/D 4000 AC380/DC520 9.5 250 2"
4DPC12-213-380/520-4000-A/D 4000 AC380/DC520 12 213 2"
4DPC14-150-380/520-3000-A/D
 3000 AC380/DC520 14 150 2"
4DPC14-190-380/520-4000-A/D
 4000 AC380/DC520 14 190 2"
4DPC18-112-380/520-3000-A/D 3000 AC380/DC520 18 112 2"
4DPC18-140-380/520-4000-A/D 4000 AC380/DC520 18 140 2"
4DPC22-78-380/520-3000-A/D 3000 AC380/DC520 22 78 2"
4DPC22-98-380/520-4000-A/D 4000 AC380/DC520 22 98 2"
4DPC30-70-380/520-4000-A/D 4000 AC380/DC520 30 70 2"
4DPC41-52-380/520-3000-A/D 3000 AC380/DC520 41 52 3"
4DPC41-60-380/520-4000-A/D 4000 AC380/DC520 41 60 3"

4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER

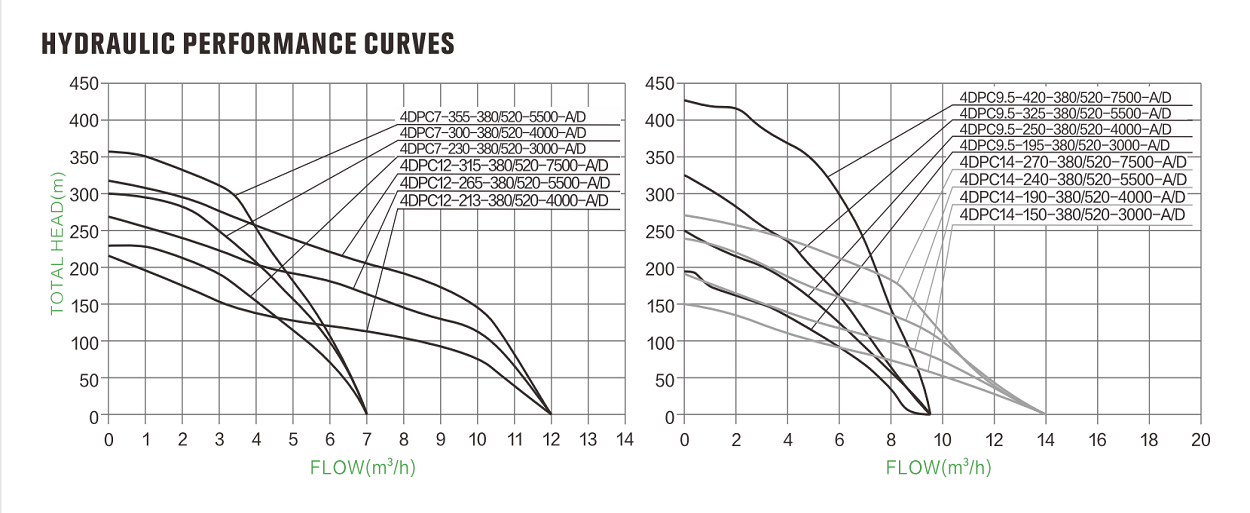

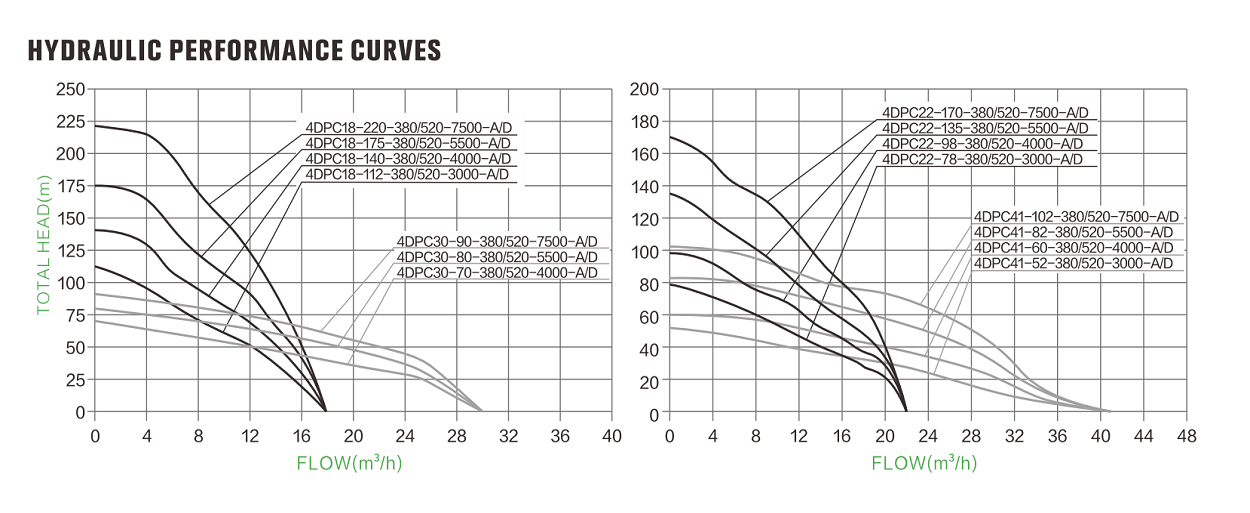

hydraulic performance curves

HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according todifferent folw and prices.

PRODUCT PACKAGING

What we get for you: (Package Include)

  • - 1 x 4inch AC/DC solar Plastic impeller pump with one 2m cable

  • - 1 x AC/DC Pump controler with MPPT function

  • - 1 x Stainless steel float swith (sensor for tank)

  • - 1 x Pump outlet joint connector

  • - 1 x Splice kit for cable join

  • - 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

  • - Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

  • - Poly pipe from pump to water tank. ( recommend 1.25/2inch or over diameter poly pipe)

  • - Wire power cable (3 wires plus earth). we recommend cable size at least same than the original cable in the pump.

CONTROLLER INTERNAL WIRING DIAGRAM

controller internal wiring

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DPC6-56-220/300-750-A/D model matches the solar panel voltage between 120V～420V.

  • 4DPC7-230-380/520-3000-A/D

    4DPC6-56-110-750-A/D PUMP SOLAR PANEL

  • 4DPC7-300-380/520-4000-A/D

    4DPC6-84-150-1100-A/D PUMP SOLAR PANEL

  • 4DPC9.5-195-380/520-3000-A/D

    4DPC6-112-150-1300-A/D PUMP SOLAR PANEL

  • 4DPC9.5-250-380/520-4000-A/D

    4DPC6-135-200-1500-A/D PUMP SOLAR PANEL

  • 4DPC12-213-380/520-4000-A/D

    4DPC6-175-300-2200-A/D PUMP SOLAR PANEL

  • 4DPC14-150-380/520-3000-A/D

    4DPC9-45-110-750-A/D PUMP SOLAR PANEL

  • 4DPC14-190-380/520-4000-A/D

    4DPC9-58-150-1100-A/D PUMP SOLAR PANEL

  • 4DPC18-112-380/520-3000-A/D

    4DPC9-71-150-1300-A/D PUMP SOLAR PANEL

  • 4DPC18-140-380/520-4000-A/D

    4DPC9-85-200-1500-A/D PUMP SOLAR PANEL

  • 4DPC22-78-380/520-3000-A/D

    4DPC9.5-125-300-2200-A/D PUMP SOLAR PANEL

  • 4DPC22-98-380/520-4000-A/D

    4DPC13-36-110-750-A/D PUMP SOLAR PANEL

  • 4DPC30-70-380/520-4000-A/D

    4DPC13-49-150-1100-A/D PUMP SOLAR PANEL

  • 4DPC41-52-380/520-3000-A/D

    4DPC13-54-150-1300-A/D PUMP SOLAR PANEL

  • 4DPC41-60-380/520-4000-A/D

    4DPC13-60-200-1500-A/D PUMP SOLAR PANEL
