Model
4DLR-A/D

Item specifics

Type
AC/DC Hybrid pump with plastic impeller
Pump Body Material
Stainless steel
Outlet Material
Brass
impeller Material
Plastic
Package type
wooden case
Warranty
2 years
Certificate
CE

Review

Description

INTRODUCTION
PRODUCT PACKAGING
WIRING INSTRUCTIONS

4 INCH AC/DC HYBRID SOLAR PUMP WITH PLASTIC IMPELLER

4" PLASTIC IMPELLER SOLAR PUMP
Model Power(W) Voltage(V) Max flow(m3/h) Max head(m) Outlet(inch)
4DLR4.5-85-110-750-A/D 750 110 4.5 85 1.25"
4DLR7.5-65-110-750-A/D 750 110 7.5 65 1.5"
4DLR7.5-100-150-1100-A/D 1100 150 7.5 100 1.5"
4DLR12-75-150-1100-A/D 1100 150 12 75 2"
4DLR14.5-45-110-750-A/D 750 110 14.5 45 2"
4DLR15-55-150-1100-A/D 1100 150 15 55 2"
4DLR15.5-70-200-1500-A/D 1500 200 15.5 70 2"
4DLR11.5-100-200-1500-A/D 1500 200 11.5 100 2"
4DLR7.5-110-200-1500-A/D 1500 200 7.5 110 2"
4DLR20-45-200-1500-A/D 1500 200 20 45 2"
4DLR22-70-300-2200-A/D 2200 300 22 70 2"
4DLR17-95-300-2200-A/D 2200 300 17 95 2"

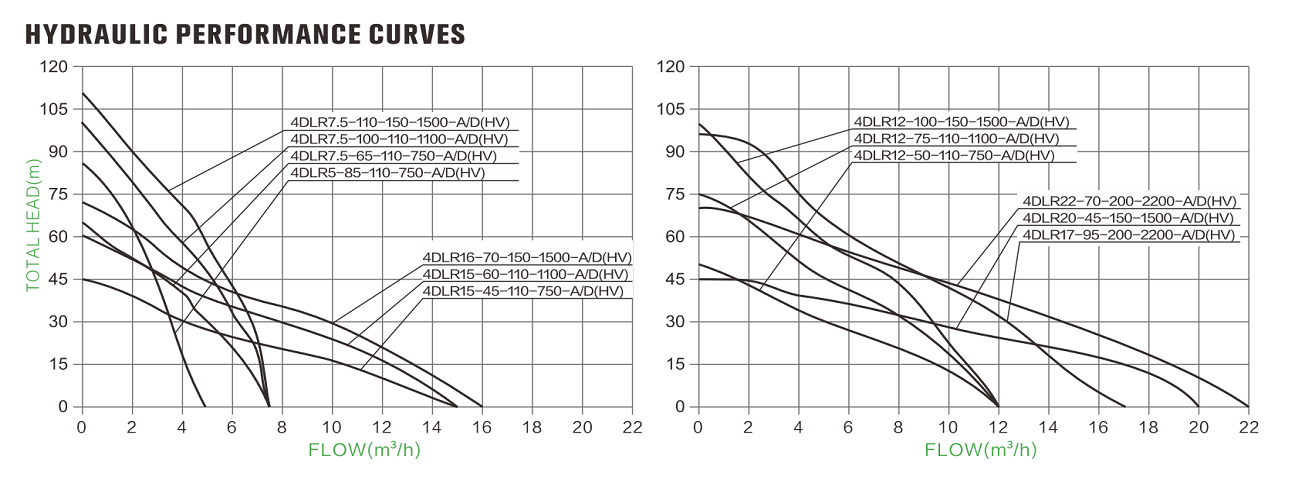

4 INCH AC/DC PLASTIC IMPELLER SOLAR PUMP PARAMETER

3" plastic impeller solar pump parameter


HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according todifferent folw and prices.

How to calculate the Head

PRODUCT PACKAGING


What we get for you: (Package Include)

  • - 1 x 4inch AC/DC solar Plastic impeller pump with one 2m cable

  • - 1 x AC/DC Pump controler with MPPT function

  • - 1 x Stainless steel float swith (sensor for tank)

  • - 1 x Pump outlet joint connector

  • - 1 x Splice kit for cable join

  • - 1 x Splice kit for waterproof

What You need to get by yourself: (Package DO NOT Include)

  • - Suitable solar panels. There’re some suggestions in the instruction book.- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

  • - Poly pipe from pump to water tank. ( recommend 1.25/1.5/2inch or over diameter poly pipe)

  • - Wire power cable (3 wires plus earth). we recommend cable size at least same than the original cable in the pump.

CONTROLLER INTERNAL WIRING DIAGRAM

controller internal wiring

HOW TO CHOOSE SOLAR PANEL

The solar PV system voltage needs to meet the voltage range in the figure below. For example: The 4DLR4.5-85-110-750-A/D model matches the solar panel voltage between 80V～420V.

  • 4DLR4.5-85-110-750-A/D

    4DLR4.5-85-110-750-A/D PUMP SOLAR PANEL

  • 4DLR7.5-65-110-750-A/D

    4DLR7.5-65-110-750-A/D PUMP SOLAR PANEL

  • 4DLR7.5-100-150-1100-A/D

    4DLR7.5-100-150-1100-A/D PUMP SOLAR PANEL

  • 4DLR12-75-150-1100-A/D

    4DLR12-75-150-1100-A/D PUMP SOLAR PANEL

  • 4DLR14.5-45-110-750-A/D

    4DLR14.5-45-110-750-A/D PUMP SOLAR PANEL

  • 4DLR15-55-150-1100-A/D

    4DLR15-55-150-1100-A/D PUMP SOLAR PANEL

  • 4DLR15.5-70-200-1500-A/D

    4DLR15.5-70-200-1500-A/D PUMP SOLAR PANEL

  • 4DLR11.5-100-200-1500-A/D

    4DLR11.5-100-200-1500-A/D PUMP SOLAR PANEL

  • 4DLR7.5-110-200-1500-A/D

    4DLR7.5-110-200-1500-A/D PUMP SOLAR PANEL

  • 4DLR20-45-200-1500-A/D

    4DLR20-45-200-1500-A/D PUMP SOLAR PANEL

  • 4DLR22-70-300-2200-A/D

    4DLR22-70-300-2200-A/D PUMP SOLAR PANEL

  • 4DLR17-95-300-2200-A/D

    4DLR17-95-300-2200-A/D PUMP SOLAR PANEL
