3Inch/4Inch AC/DC&WIDE VOLTAGE BRUSHLESS SCREW SOLAR PUMP | 4500 RPM DIFFUL ＆WELLUP WATER PUMP |Household Water Supply And Irrigation
- Model
- 4/6HJSC
Item specifics
- Material
- Stainless Steel
- Type
- Brushless Solar Pump
- Warranty
- 3/4HJSS-A/D(HV) 2-year ; 3/4HJSS-A/D-IN1-year
- MOQ
- 1set
Review
Description
3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump
3Inch4Inch AC/DC&Wide voltage brushless screw solar pump - stainless impeller, MPPT controller, brushless motor.
Features: 304 stainless steel impeller, corrosion resistant.
Greatly use for farm livestock,Off-grid household water supply, agricultural irrigation.
TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage（AC） | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
| 3HJSS-150-72-750-A/D(HV) | A/D-IN | 85V-280V | 100V-350V | 750W | 2m³/h | 150m | 0.75" | 2m | <450V | <430V |
| 4HJSS3.7-112-72-750-A/D(HV) | 85V-280V | 100V-350V | 750W | 2m³/h | 150m | 1" | 2m | <450V | <430V |
3Inch4Inch AC/DC&Wide Voltage Brushless Screw Solar Pump

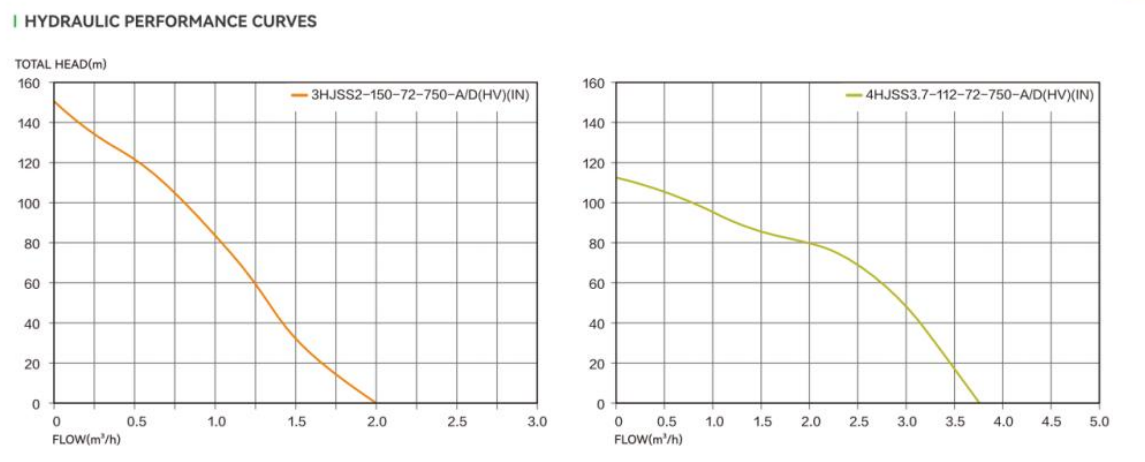

HYDRAULIC PERFORMANCE CURVE
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
