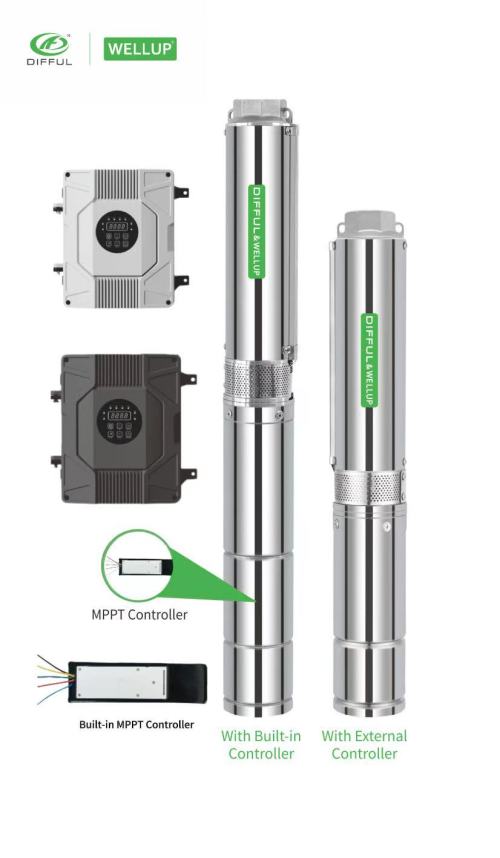

3"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM SOLAR PUMP| Reliable for Off-grid household water supply and irrigation
- Model
- 3HJPC-A/D(HV)
Item specifics
- Material
- Stainless Steel
- Type
- Brushless Solar Pump
- Warranty
- 3HJPC-A/D(HV)-2 year;3HJPC-A/D(HV) -IN 1-year
- MOQ
- 1set
- Model
- 3HJPC-A/D(HV) Series
- Certificate
- CE, ISO9001
Review
Description
3"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER

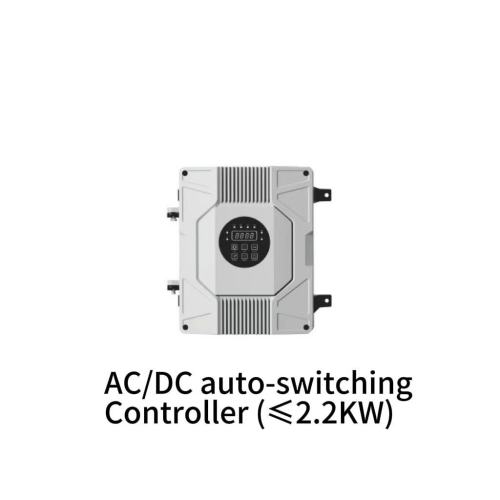

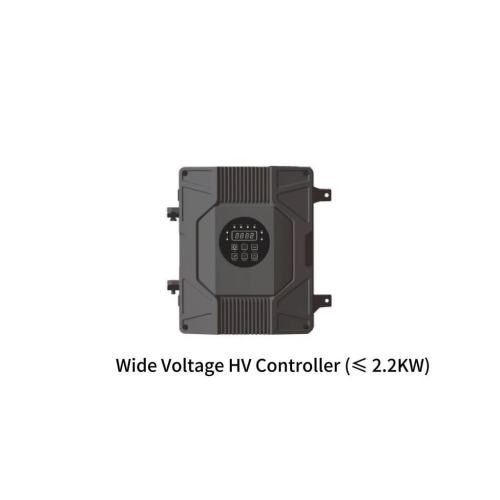

3"AC/DC &Wide voltage brushless solar pump with S/S impeller - stainless impeller, MPPT controller, brushless motor. Good for farm livestock ,off-grid household water supply and agricultural irrigation.
Features:stable large flow, wide voltage and high resistance.
3"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage(AC) | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
| 3HJPC3.8-95-110-750-A/D(HV) | A/D-IN | 85V-280V(/) | 110V-350V | 750W | 3.8m³/h | 95m | 1.25" | 2m | <450V | <430V |
3HJPC3.8-123-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 3.8m³/h | 123m | 1.25" | 2m | <450V | <430V | |
3HJPC3.8-155-110-1300-A/D(HV) | 85V-280V(/) | 110V-350V | 1300W | 3.8m³/h | 155m | 1.25" | 2m | <450V | <430V | |
3HJPC3.8-180-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 3.8m³/h | 180m | 1.25" | 2m | <450V | <430V | |
3HJPC5.2-75-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 5.2m³/h | 75m | 1.5" | 2m | <450V | <430V | |
3HJPC5.5-65-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 5.5m³/h | 65m | 1.5" | 2m | <450V | <430V | |
3HJPC6-84-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 6m³/h | 84m | 1.5" | 2m | <450V | <430V | |
3HJPC6-125-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 6m³/h | 125m | 1.5" | 2m | <450V | <430V | |
3HJPC7-46-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 7m³/h | 46m | 1.5" | 2m | <450V | <430V | |
| 3HJPC8-62-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 8m³/h | 62m | 1.5" | 2m | <450V | <430V | |
| 3HJPC8-90-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 8m³/h | 90m | 1.5" | 2m | <450V | <430V |

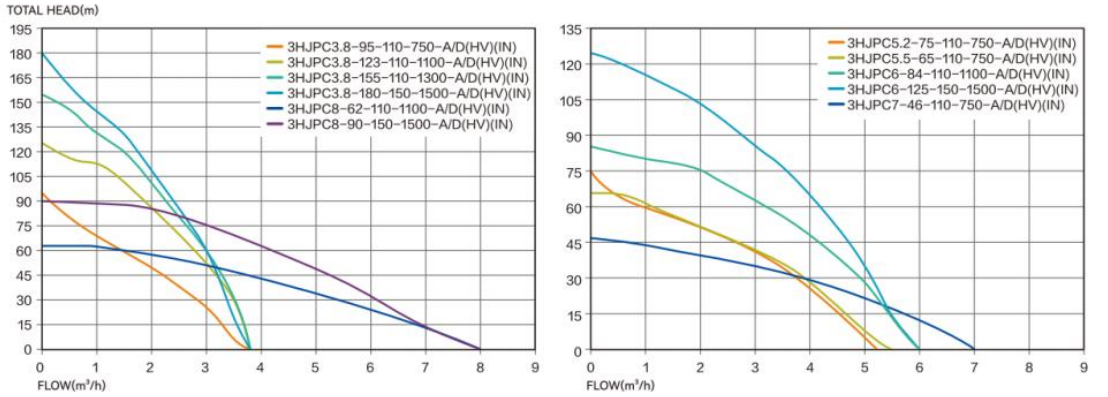

3"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER Performance Curve
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
